Building an instrumentation_base file
Instrumentation files represent a complete instrumentation, with one or more
channels consisting of a sensor, a preamplifier and possible a datalogger.
The _base part of the filetype indicates that this file can have
configurations and can be modified from higher levels. Instrumentation
files can call lower-level files in order to avoid repeating information.
The figure below compares the hierarchy of files beneath the instrumentation_base
file with the StationXML element hierarchy:
The obsinfo hierarchy replicates the information in the StationXML
hierarchy, with the least repeated information possible.
Instead of fully and separately declaring each channel, it declares a default
channel, and then any differences that the other channels have with the default.
Instead of having one list of stages that integrates the sensor, preamplifier and
datalogger, each of these instrument components has its own list of stages.
The “InstrumentSensitivity” element is absent in obsinfo, as it can be calculated
from the stages.
The StationXML Sensor, Preamplifier and Datalogger elements, which
are simply implementations of the Equipment element
type, are declared as “sensor:equipment”, “preamplifier:equipment” and
“datalogger:equipment” in obsinfo.
Creating the instrumentation_base file
The easiest way to create an instrumentation_base file is from a template.
By typing obsinfo template instrumentation_base, you will create the
following file, named TEMPLATE.instrumentation_base.yaml
---
format_version: "1.0"
revision:
authors:
- {$ref: "persons/EXAMPLE.person.yaml"} # Reference to a file,
# or fields of a person element
date: "2024-09-30" # yyyy-mm-dd
instrumentation_base:
equipment:
model: "MY_OBS"
type: "My Ocean Bottom Seismometer"
description: "This is my OBS!"
manufacturer: "My OBS park"
# BEGIN OPTIONAL equipment elements
vendor: "various"
serial_number: "2014a2"
installation_date: "2024-09-30"
removal_date: "2025-08-31"
resource_id: "IPGP:2004iepw44" # Unique ID of the filter, typically
# "GENERATOR:Meaningful_ID"
calibration_dates:
- "2004-09-22T07:00:00"
- "2014-08-31T07:00:00"
# END OPTIONAL equipment elements
channels:
default:
datalogger:
base: {$ref: "datalogger_bases/EXAMPLE.datalogger_base.yaml"}
# BEGIN OPTIONAL datalogger elements
configuration: "100sps_LINEAR" # Must be a configuration defined in the datalogger_base
serial_number: "20"
notes: ["A note"]
equipment: # modify elements of the equipment defined in datalogger_base
model: "ADS1281"
manufacturer: "Texas Instruments"
description: "Single Chip High-Resolution Analog-to-Digital Converter"
# BEGIN OPTIONAL equipment elements.
type: "delta-sigma A/D converter + digital filter"
vendor: "various"
serial_number: "2014a2"
installation_date: "2024-09-30"
removal_date: "2025-08-31"
resource_id: "IPGP:2004iepw44"
calibration_dates:
- "2004-09-22T07:00:00"
# END OPTIONAL equipment elements.
stages: # replace all stages
- {base: {$ref: "datalogger_bases/stage_bases/EXAMPLE_FIR1.stage_base.yaml"}}
- {base: {$ref: "datalogger_bases/stage_bases/EXAMPLE_FIR2.stage_base.yaml"}}
- {base: {$ref: "datalogger_bases/stage_bases/EXAMPLE_FIR2.stage_base.yaml"}}
- {base: {$ref: "datalogger_bases/stage_bases/EXAMPLE_FIR2.stage_base.yaml"}}
- {base: {$ref: "datalogger_bases/stage_bases/EXAMPLE_FIR2.stage_base.yaml"}}
- {base: {$ref: "datalogger_bases/stage_bases/EXAMPLE_FIR2.stage_base.yaml"}}
- {base: {$ref: "datalogger_bases/stage_bases/EXAMPLE_FIR2.stage_base.yaml"}}
- {base: {$ref: "datalogger_bases/stage_bases/EXAMPLE_FIR2.stage_base.yaml"}}
- {base: {$ref: "datalogger_bases/stage_bases/EXAMPLE_FIR3.stage_base.yaml"}}
stage_modifications: # Modify certain stages
"1": {gain: {value: 100}} # Modifies the "gain" subelement of stage 1
sample_rate: 125 # Only needed if you replace/modify stages
correction: 24 # Only needed if you replace/modify stages
# END OPTIONAL datalogger elements
sensor:
base: {$ref: "sensor_bases/EXAMPLE_BBSeismometer.sensor_base.yaml"}
# BEGIN OPTIONAL sensor elements
configuration: "something" # Must be a configuration defined in the sensor_base
serial_number: "A16"
notes: ["A note"]
equipment:
# All elements are optional, see datalogger:equipment above
model: "Example sensor"
stages:
- {base: {$ref: "sensor_bases/stage_bases/EXAMPLE_DPG.stage_base.yaml"}}
stage_modifications:
"1": {gain: {value: 100}} # Modifies the "gain" subelement of stage 1
seed_codes: # Modify values given in sensor_base
# BEGIN OPTIONAL seed_codes elements
band: "shortperiod" # "shortperiod" or "broadband" to
# automatically choose the appropriate
# band code for the sample rate, or
# one of the "non-band" band codes:
# ('A', 'I', 'O', 'L' or 'S')
instrument: "H" # Seed instrument code
# END OPTIONAL seed_codes elements
# END OPTIONAL sensor elements
# BEGIN OPTIONAL default elements
preamplifier:
base: {$ref: "preamplifier_bases/EXAMPLE_DPG.preamplifier_base.yaml"}
# BEGIN OPTIONAL preamplifier elements
configuration: "16x" # Must be a configuration defined in the preamplifier_base
serial_number: "2020_003"
notes: ["A note"]
equipment:
# All elements are optional, see datalogger:equipment above
model: "Example sensor"
stages:
- {base: {$ref: "preamplifier_bases/stage_bases/EXAMPLE_DPG-Card.stage_base.yaml"}}
stage_modifications:
"1": {gain: {value: 100}} # Modifies the "gain" subelement of stage 1
# END OPTIONAL preamplifier elements
location_code: "01" # If not specified, use station's location code
restricted_status: "open" # "open", "closed", or "partial"
source_id: "FDSN:XX_SS_00_H_H_Z" # StationXML sourceID: FDSN:<network>_<station>_<location>_<band>_<source>_<subsource>
identifiers: ["DOI:10.7915/SN/XX"] # List of identifiers
external_references: # List of external references
- uri: "http://usgs.gov"
description: "USGS website"
comments: # List of comments
- "A simple channel-level comment"
- value: "A full channel-level comment"
# OPTIONAL full comment elements
begin_effective_time: "2020-01-01T00:00:00Z"
end_effective_time: "2024-09-30T00:00:00Z"
id: 1 # integer id
subject: "My subject" # An attribute
authors:
- {$ref: "persons/EXAMPLE.person.yaml"}
# END OPTIONAL full comment elements
extras: {} # anything you want, written as an object (put into comments)
# END OPTIONAL default elements
"1": # One element per instrument channel, name is generally the
# datalogger's channel #
orientation:
code: "Z" # The SEED orientation (or sub-source) code for this channel
azimuth.deg:
value: 0
# BEGIN OPTIONAL azimuth.deg elements
uncertainty: 180
# END OPTIONAL azimuth.deg elements
dip.deg:
value: -90
# BEGIN OPTIONAL dip.deg elements
uncertainty: 5
# END OPTIONAL dip.deg elements
# BEGIN OPTIONAL channel elements that MODIFY the specified elements
sensor: {configuration: "blah"} # UPDATE default sensor's fields
datalogger: {configuration: "bleh"} # UPDATE default datalogger's fields
preamplifier: {configuration: "bluh"} # UPDATE default preamplifier's fields
identifiers: ["DOI:10.7915/SN/YY"]
external_references:
- uri: "http://ipgp.fr"
description: "IPGP website"
comments :
- "A simple channel-level comment"
extras: {}
# END OPTIONAL channel elements that MODIFY the specified elements
# BEGIN OPTIONAL channel elements that REPLACE default elements
location_code: '03'
restricted_status: "closed"
source_id: "FDSN:XX_SS_00_H_H_H"
replace_sensor:
base: {$ref: "sensor_bases/EXAMPLE_DPG.sensor_base.yaml"}
replace_datalogger:
base: {$ref: "datalogger_bases/EXAMPLE.datalogger_base.yaml"}
# BEGIN OPTIONAL replace_datalogger elements
configuration: "250sps"
# END OPTIONAL replace_datalogger elements
replace_preamplifier:
base: {$ref: "preamplifier_bases/EXAMPLE_DPG.preamplifier_base.yaml"}
replace_identifiers: ["DOI:10.7915/SN/YY"]
replace_external_references:
- uri: "http://ipgp.fr"
description: "IPGP website"
replace_comments:
- "A replacement channel-level comment"
replace_extras: {}
# END OPTIONAL channel elements that REPLACE default elements
# BEGIN OPTIONAL instrumentation_base elements
configuration_default: "CONFIG1"
configurations:
"CONFIG1": # Modifications to the base instrumentation
channels:
"default": {replace_datalogger: {base: {$ref: "datalogger_bases/EXAMPLE.datalogger_base.yaml"}}}
"CONFIG2": # Modifications to the base instrumentation
channels:
"default":
replace_datalogger: {base: {$ref: "datalogger_bases/EXAMPLE.datalogger_base.yaml"}}
replace_preamplifier:
base: {$ref: "preamplifier_bases/EXAMPLE_DPG.preamplifier_base.yaml"}
configuration: "16x gain"
"SN01":
equipment: {serial_number: '01'}
channels:
default: {sensor: {configuration: "Sphere01"}}
"4": {sensor: {configuration: "generic"}}
# END OPTIONAL instrumentation_base elements
# BEGIN OPTIONAL top-level elements
notes:
- ""
# END OPTIONAL top-level elements
The template file points to information files in the example database. For the following, your DATAPATH should point there (see Copy an example database into your own folder)
Validating the instrumentation_base file
Validating your instrumentation file follows the same sequences as Validating your subnetwork file :
Run the schema subcommand
Type obsinfo schema TEMPLATE.instrumentation_base.yaml. The console output should be:
Validating instrumentation_base file
Reading {somepath}/TEMPLATE.instrumentation_base.yaml
schema = istrumentation_base.schema.json
Testing instance ...OK
istrumentation_base test for: {somepath}/TEMPLATE.instrumentation_base.yaml: PASSED
Run the print subcommand
Type obsinfo print TEMPLATE.instrumentation_base.yaml.
The console output should be:
TEMPLATE.instrumentation_base.yaml:
Instrumentation:
equipment: Equipment:
type: My Ocean Bottom Seismometer
description: This is my OBS!
model: MY_OBS
manufacturer: My OBS park
vendor: various
serial_number: 2014a2
resource_id: IPGP:2004iepw44
installation_date: 2024-09-30
removal_date: 2025-08-31
calibration_dates: OIDates: 2 OIDates
channels: Channels: [Channel 03.CDH]
Run the plot subcommand

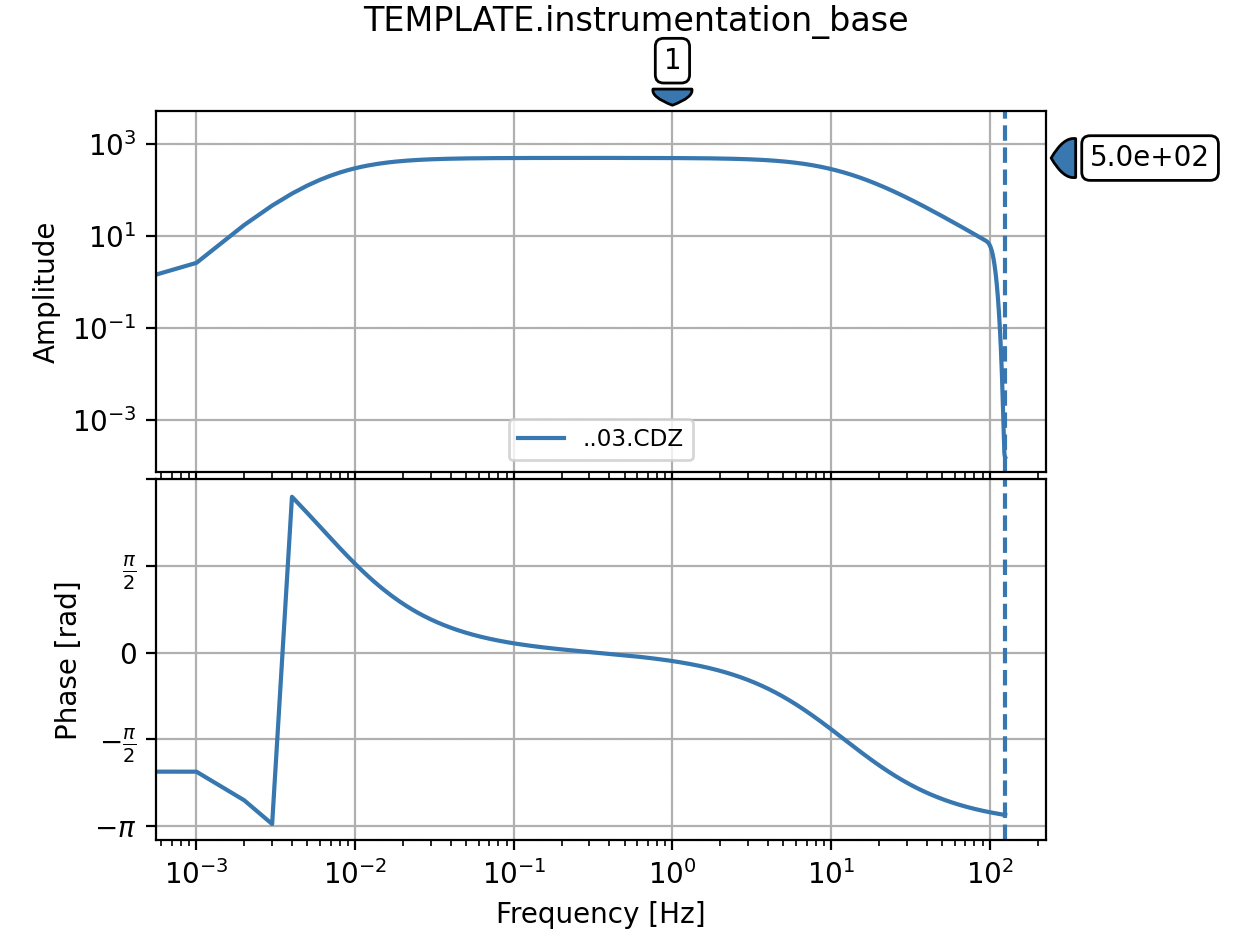

Type obsinfo plot TEMPLATE.instrumentation_base.yaml. The program will plot
the instrument responses for each channel:
Since the template file only has one channel, only one response is plotted.
Modifying the instrumentation_base file
Simplifying
Every line between an # BEGIN OPTIONAL {...} and its matching
# END OPTIONAL {...} comment lines can be removed.
Copy TEMPLATE.instrumentation_base.yaml to a new file called
SIMPLE.instrumentation_base.yaml, and remove all optional lines from
this new file.
You will obtain a greatly simplified file that still validates, prints and
plots:
---
format_version: "1.0"
revision:
authors:
- {$ref: "persons/EXAMPLE.person.yaml"}
date: "2024-09-30"
instrumentation_base:
equipment:
model: "MY_OBS"
type: "My Ocean Bottom Seismometer"
description: "This is my OBS!"
manufacturer: "My OBS park"
channels:
default:
datalogger:
base: {$ref: "datalogger_bases/EXAMPLE.datalogger_base.yaml"}
sensor:
base: {$ref: "sensor_bases/EXAMPLE_BBSeismometer.sensor_base.yaml"}
"1": # One element per instrument channel
orientation:
code: "H" # The SEED orientation (or sub-source) code for this channel
azimuth.deg:
value: 0
dip.deg:
value: -90
> obsinfo print SIMPLE.instrumentation_base.yaml
SIMPLE.instrumentation_base.yaml:
Instrumentation:
equipment: Equipment:
type: My Ocean Bottom Seismometer
description: This is my OBS!
model: MY_OBS
manufacturer: My OBS park
channels: Channels: [Channel 00.HHZ]

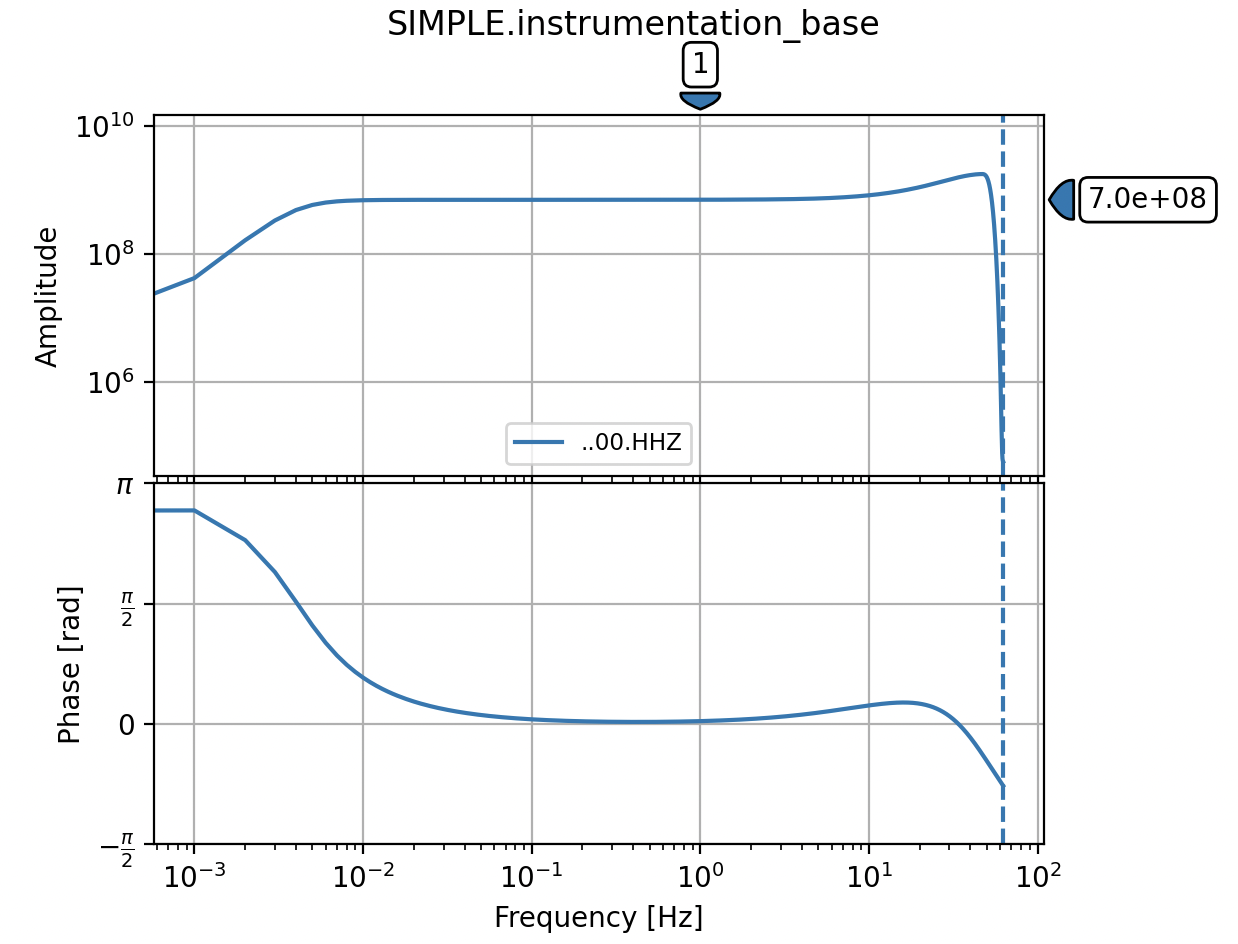

> obsinfo plot SIMPLE.instrumentation_base.yaml
The sensor response is different because the sensor was replaced in the original template file.
Adding channels
Below we add some channels, to create a typical ocean bottom seismometer, with
three seismometer channels and one pressure channel.
Copy SIMPLE.instrumentation_base.yaml to
MULTICHANNEL.instrumentation_base.yaml and add new channels “2”, “3”
and “4” to obtain the following:
channels:
default:
datalogger:
base: {$ref: "datalogger_bases/EXAMPLE.datalogger_base.yaml"}
sensor:
base: {$ref: "sensor_bases/EXAMPLE_BBSeismometer.sensor_base.yaml"}
"1":
orientation: {code: "Z", azimuth.deg: {value: 0}, dip.deg: {value: -90}}
"2":
orientation: {code: "1", azimuth.deg: {value: 0, uncertainty: 180},
dip.deg: {value: -90}}
"3":
orientation: {code: "2", azimuth.deg: {value: 90, uncertainty: 180},
dip.deg: {value: -90}}
"4":
orientation: {code: "H", azimuth.deg: {value: 0}, dip.deg: {value: -90}}
replace_sensor:
base: {$ref: "sensor_bases/EXAMPLE_DPG.sensor_base.yaml"}
(the declaration of channel “1” is then same as before, but we have
used a more compact, JSON-based, syntax). Some notes are:
- The replace_sensor element in channel key=``”4”`` completely
replaces the sensor. If we had used sensor, it would have
modified the existing sensor, replacing all the sub-elements specified
in sensor_bases/EXAMPLE_DPG.sensor_base.yaml but leaving any non-specified
values, for example configurations with different names, which we rarely want
to do.
Also note that the channel key is not the same as its code.
The key is not seen in the output StationXML file and can be any text string.
We recommend using a code for the instrumentations’ internal port, which can be
useful for noting which internal datalogger channel ports are used.
The print and plot outputs change accordingly:
MULTCHANNEL.instrumentation_base.yaml:
Instrumentation:
equipment: Equipment:
type: My Ocean Bottom Seismometer
description: This is my OBS!
model: MY_OBS
manufacturer: My OBS park
channels: Channels:
- Channel 00.HHZ
- Channel 00.HH1
- Channel 00.HH2
- Channel 00.HDH

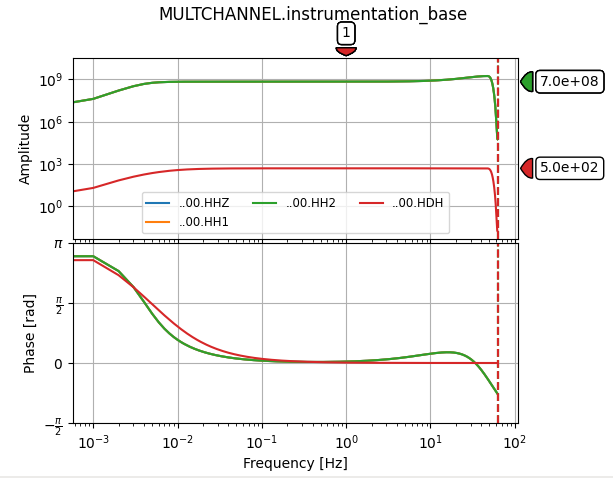

We only see two traces in each plot, because all of the seismometer channels have the same response.
Modifying channels
You can use the configuration, modification and/or stage_modification
elements to modify from the instrument components' default properties.
Copy MULTICHANNEL.instrumentation_base.yaml to
MODIFIIED.instrumentation_base.yaml, then modify channel key:
“2”, to specify a configuration using the
configurationelement:“3”, to change a stage gain using the
stage_modificationselement:
You should obtain the following (with 2 lines changed from the previous version):
channels:
default:
datalogger:
base: {$ref: "datalogger_bases/EXAMPLE.datalogger_base.yaml"}
sensor:
base: {$ref: "sensor_bases/EXAMPLE_BBSeismometer.sensor_base.yaml"}
"1":
orientation: {code: "Z", azimuth.deg: {value: 0}, dip.deg: {value: -90}}
"2":
orientation: {code: "1", azimuth.deg: {value: 0, uncertainty: 180},
dip.deg: {value: -90}}
sensor: {configuration: "SN1-399, differential"}
"3":
orientation: {code: "2", azimuth.deg: {value: 90, uncertainty: 180},
dip.deg: {value: -90}}
sensor: {stage_modifications: {"1": {gain: {value: 20}}}}
"4":
orientation: {code: "H", azimuth.deg: {value: 0}, dip.deg: {value: -90}}
replace_sensor:
base: {$ref: "sensor_bases/EXAMPLE_DPG.sensor_base.yaml"}

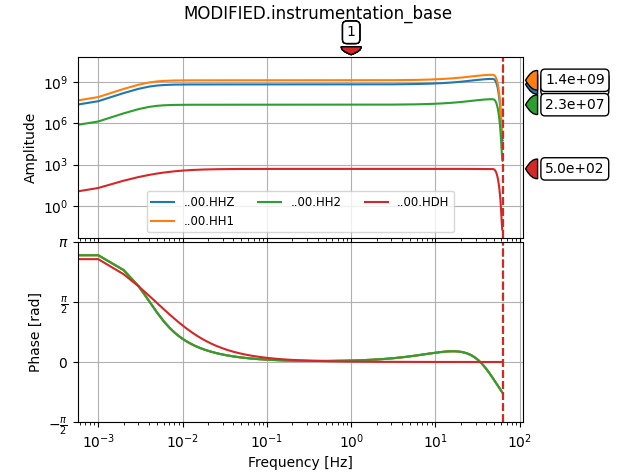

Each channel now has a different gain:
